Jeep JL & JT Summit Modular Front Bumper

SKU: 600.100.100
$624.99
Category:
Jeep Bumpers
Jeep Front Bumpers
JL & JT Summit Series (2018 - Present)
Manual:
PDF icon 600.100.100 Installation Instructions.pdf
Weight: 76 lb
Dimensions: 46 in × 14 in × 10 in
Fits:

All JL & JT Model Years, 2018 to Present

Installation Time:

2-3 Hours

Warranty:

1 Year Limited Warranty

Model:
JL Summit Series (2018 - Present)

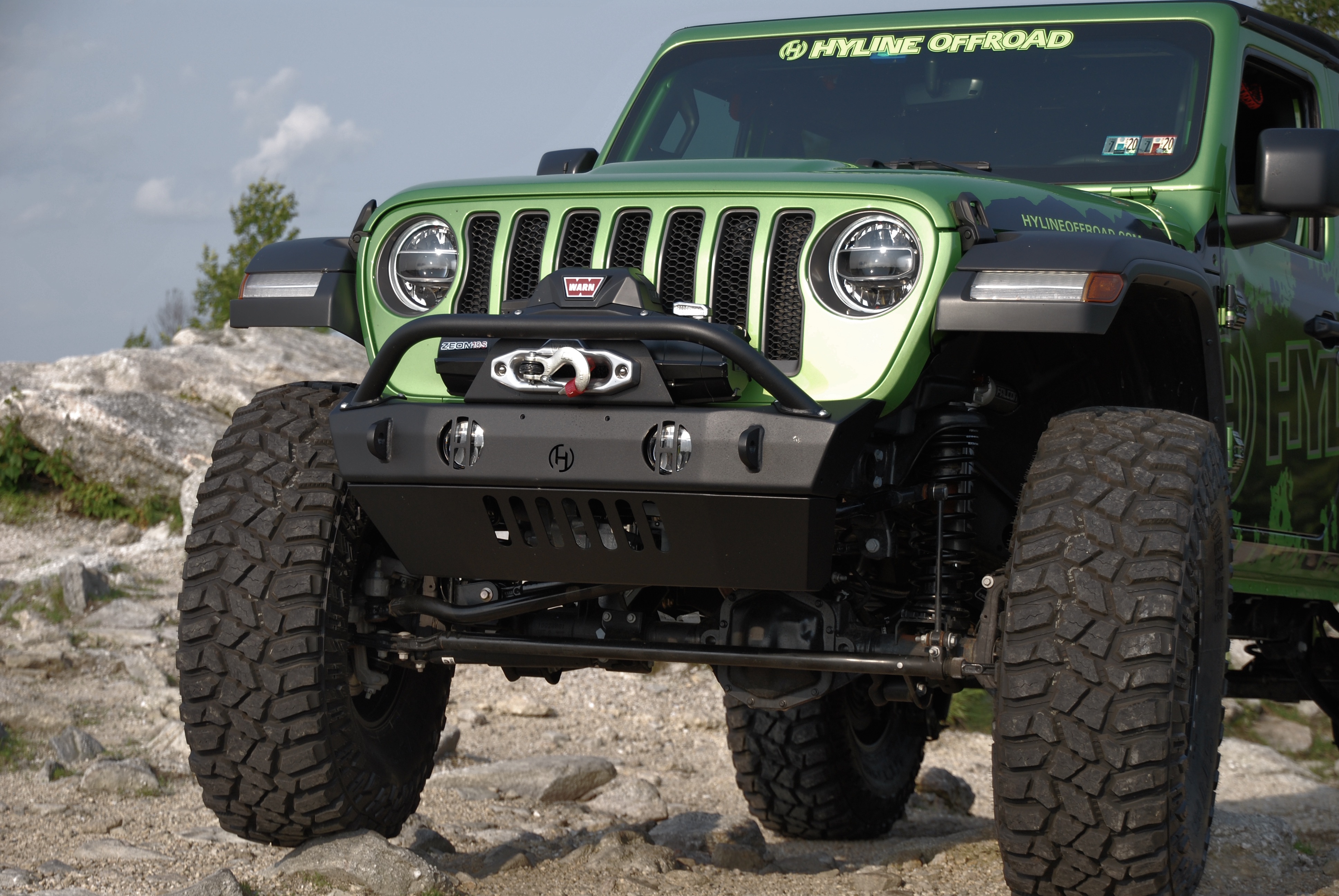

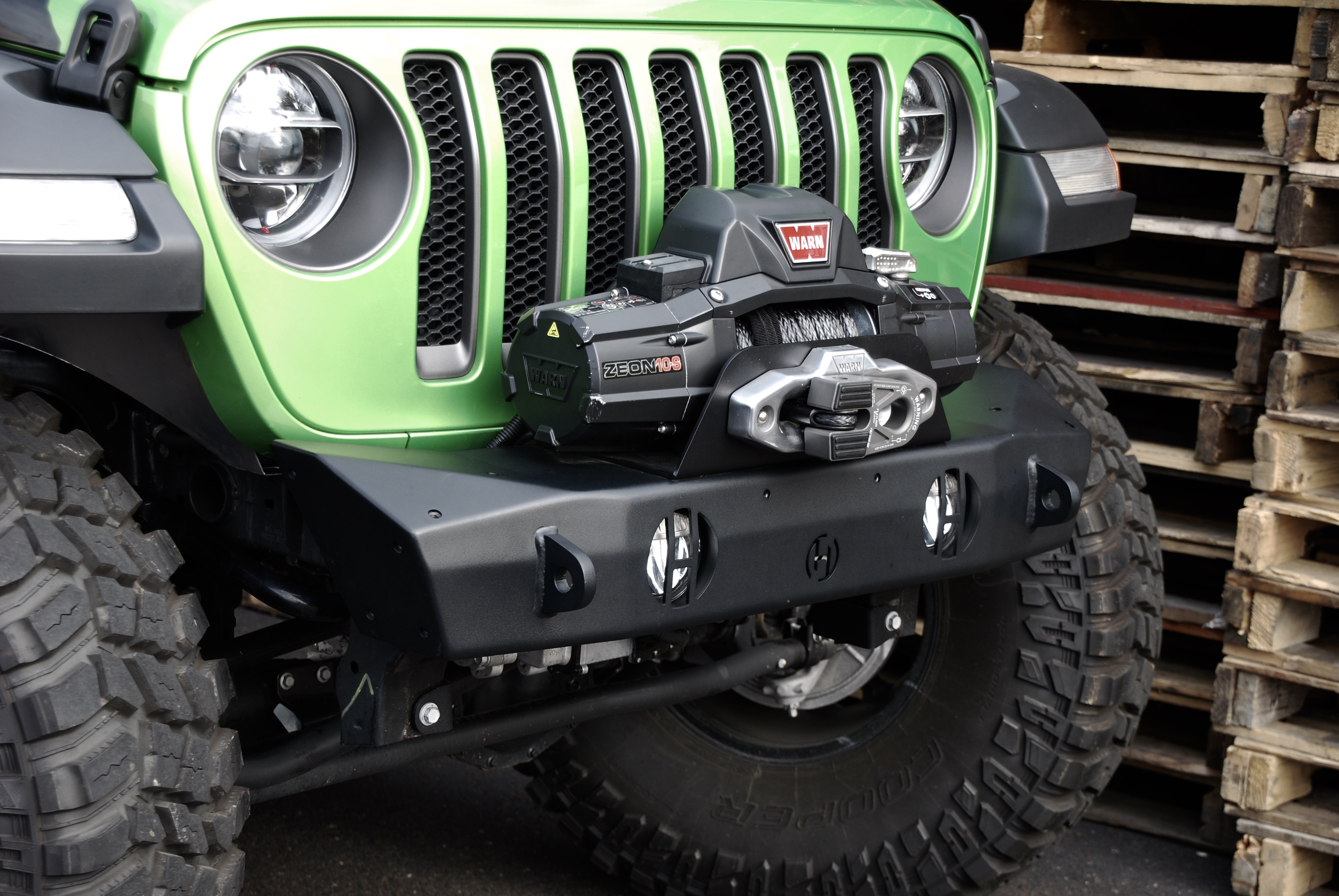

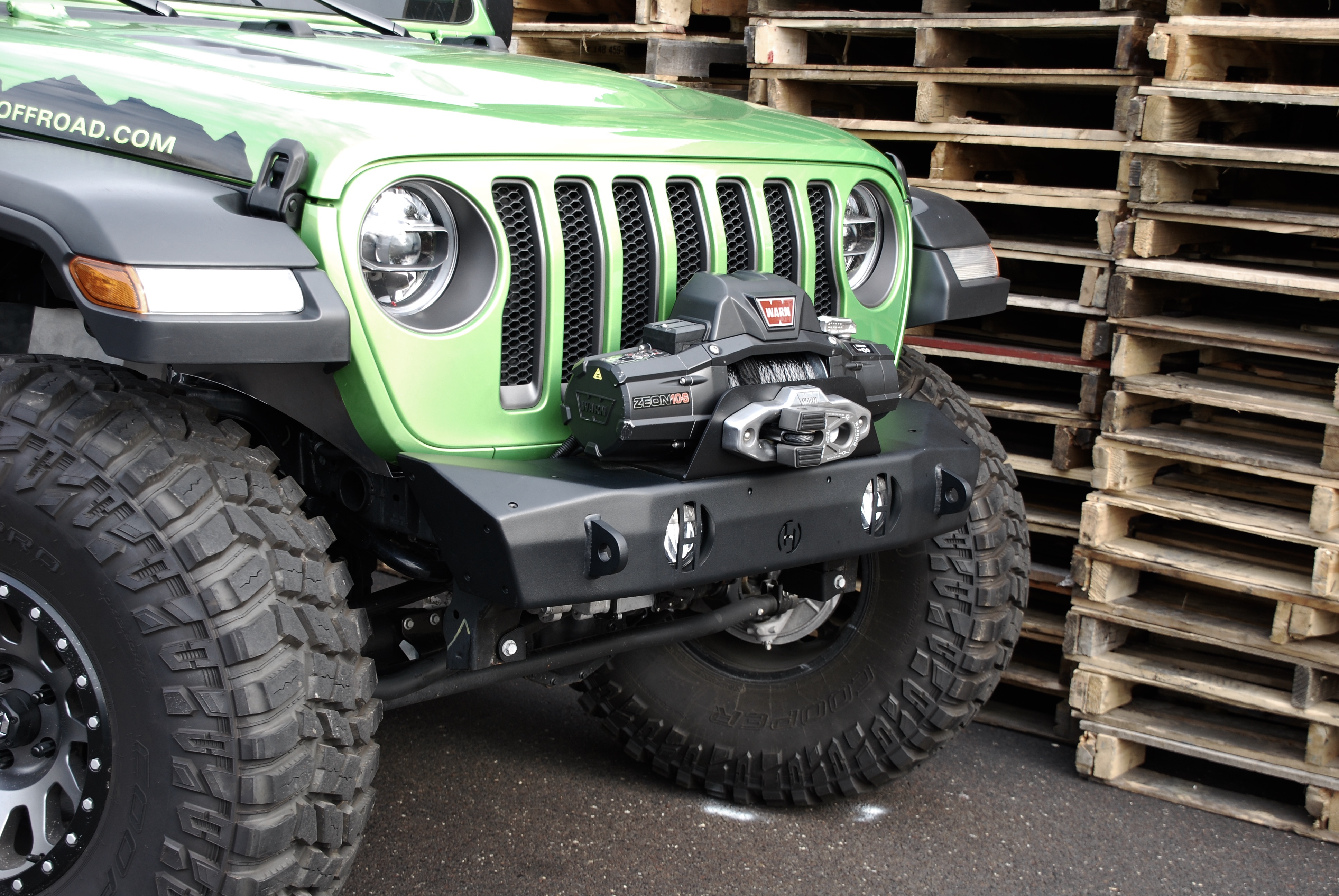

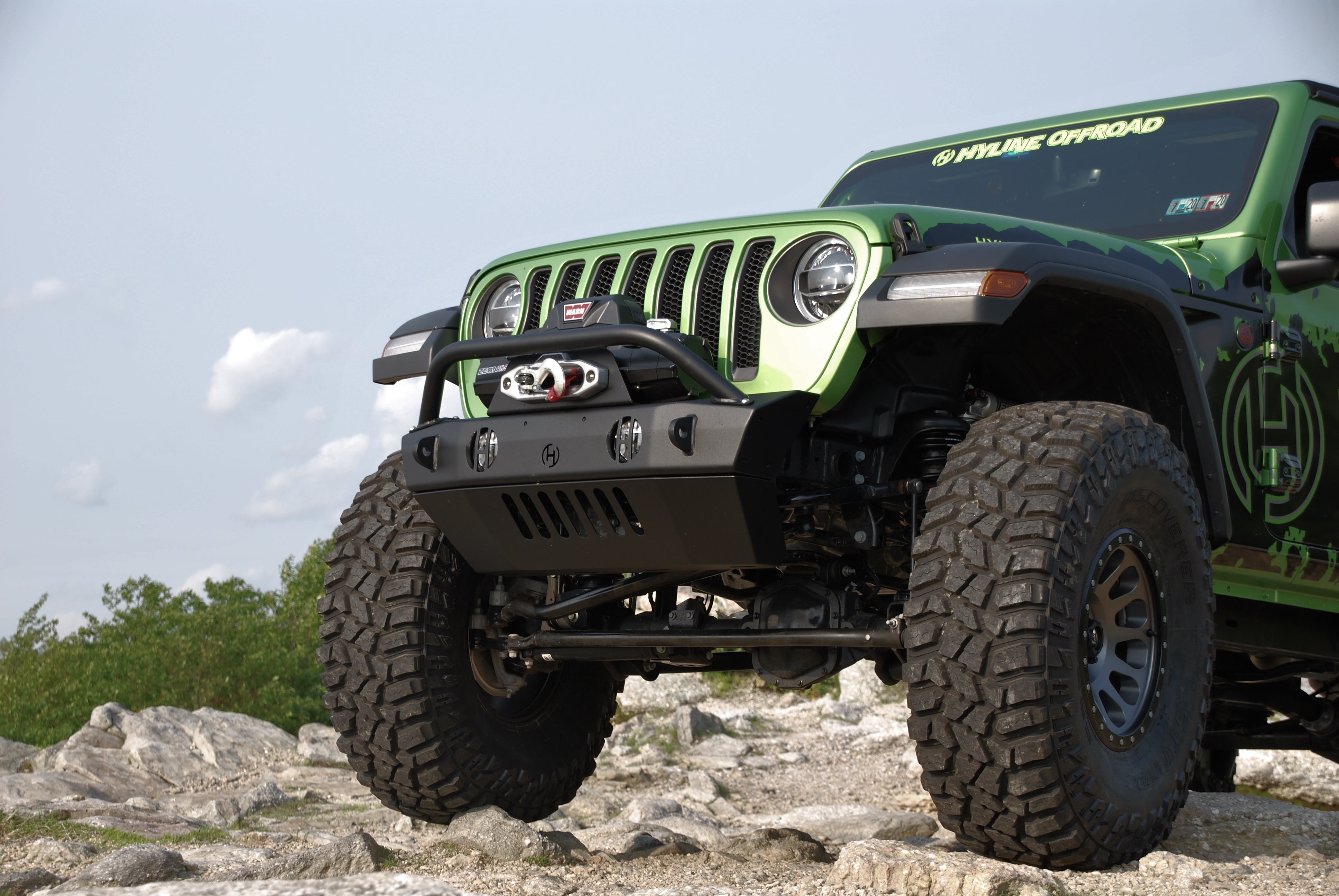

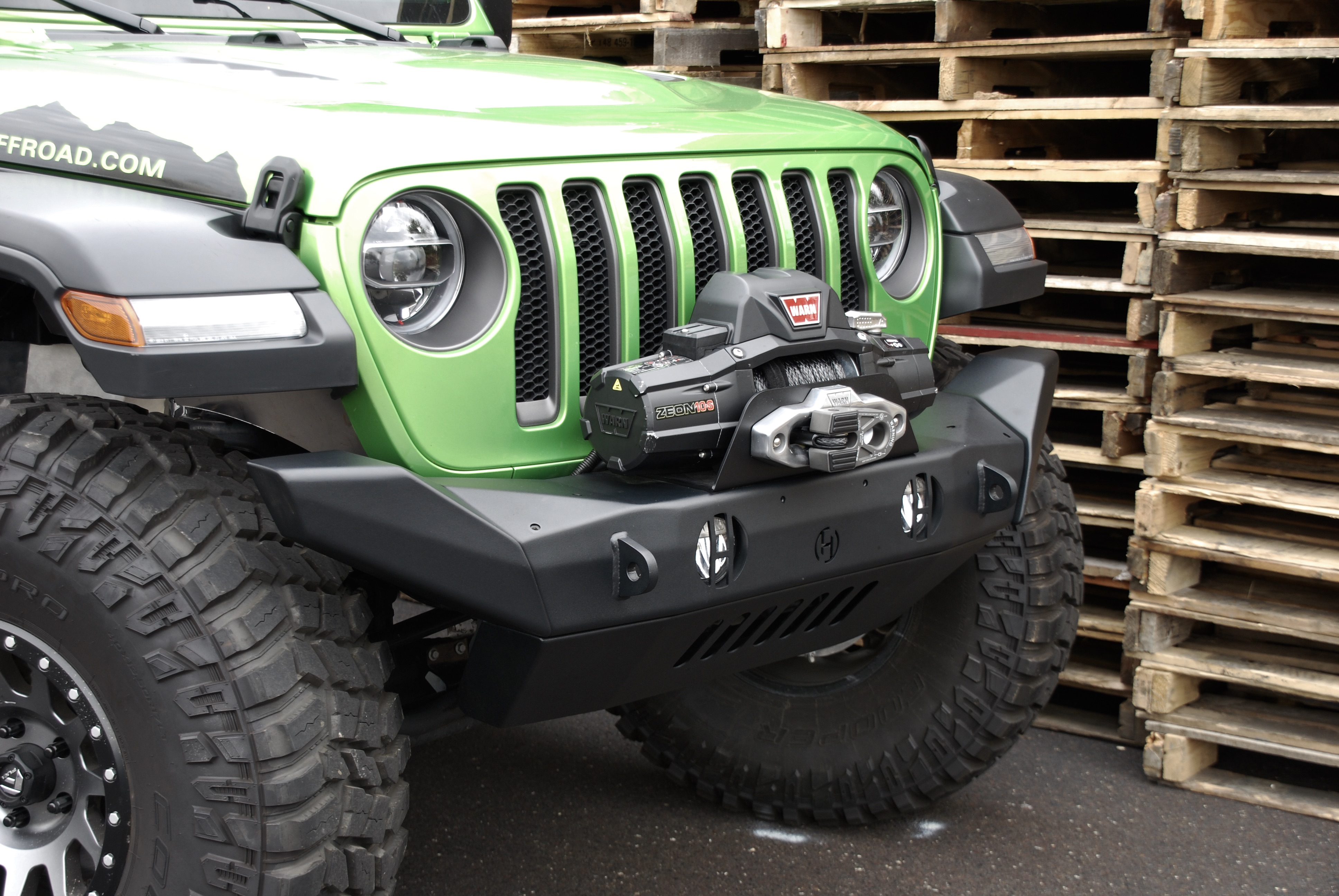

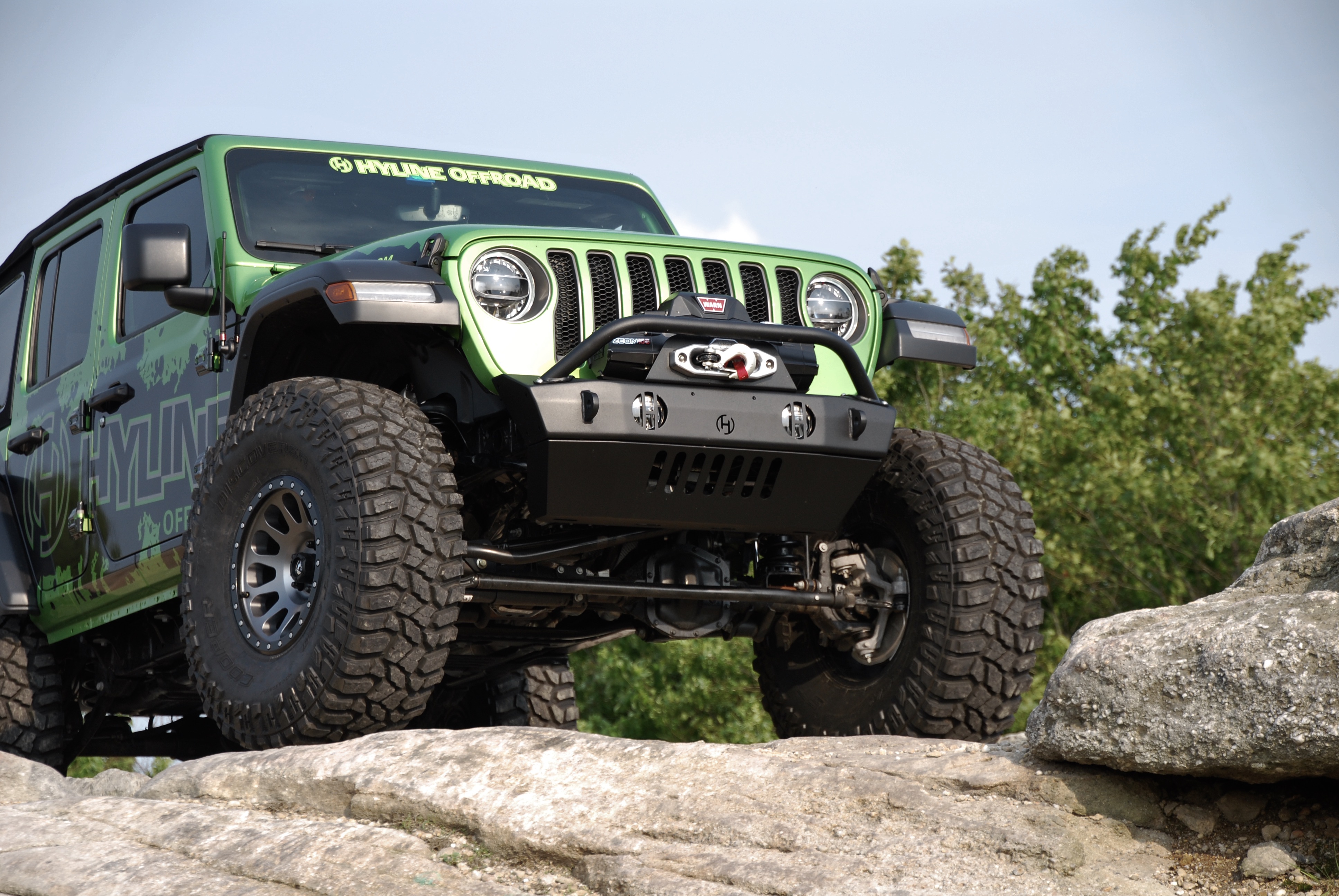

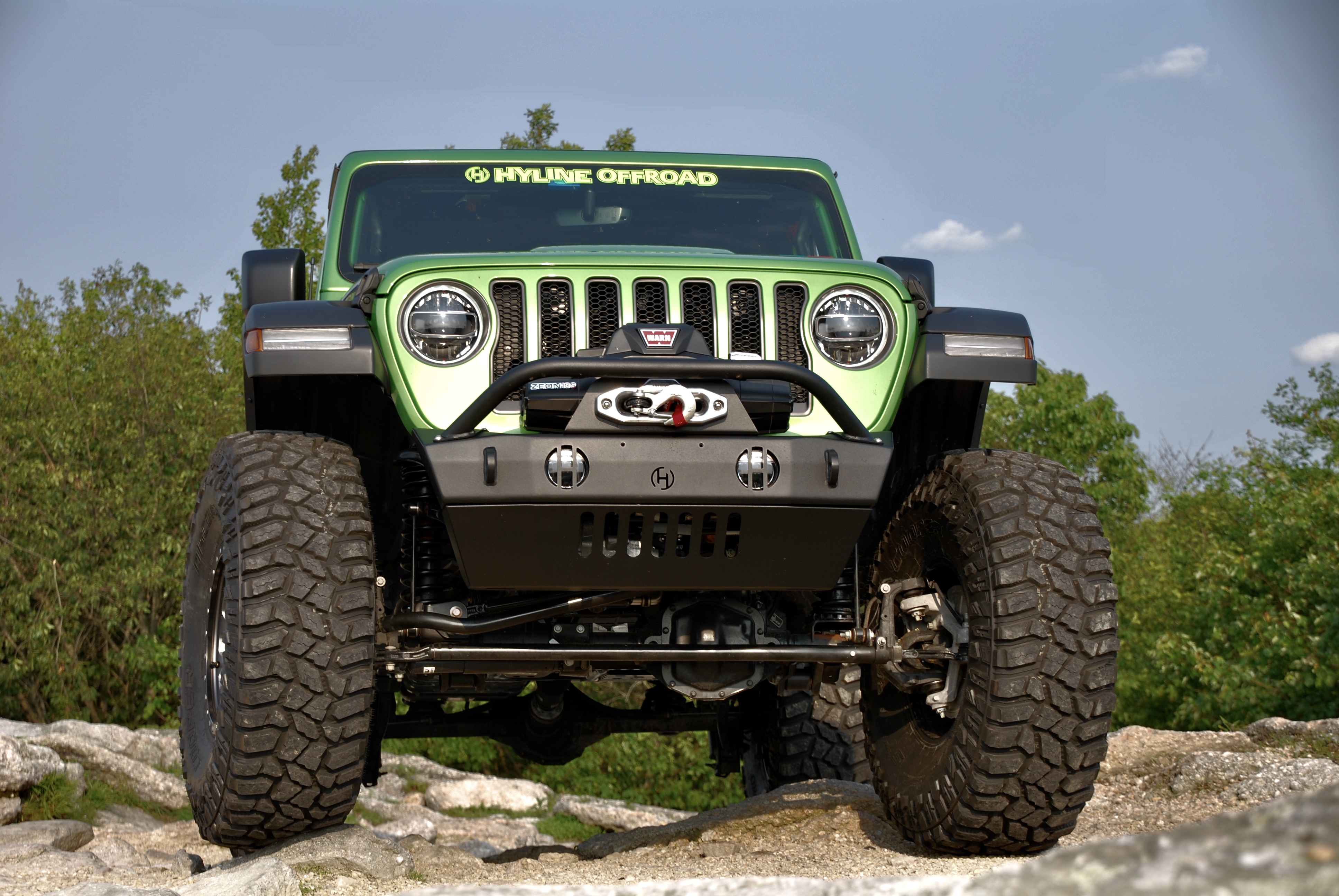

This newly designed front bumper for the JL and JLU Jeep Wranglers gives you the option to build your bumper package just as you like it.  Start with the base stubby bumper with top or recessed mounted winch, then add on the winch guard/light bar, end caps and air dam skid plate.  Mix and match however you like.

As with all Hyline Offroad products these are designed and built with superior durability and longevity in mind.  We put all bumpers and accessories through a rigorous finishing process that includes an acid rinse for prepping the metal, then E-Coated that acts as a complete sealing primer and finally a topcoat using an automotive grade powder coat.  The powder topcoat is a very light texture semi-gloss that closely matches the OEM black plastic fender flare texture.  Though this is a more expensive process it ensures your purchase will last for years to come.





Here’s all the features included with this bumper:



  • 3/16” Steel Construction with 1/4” Plate Mounting Brackets and Stiffeners

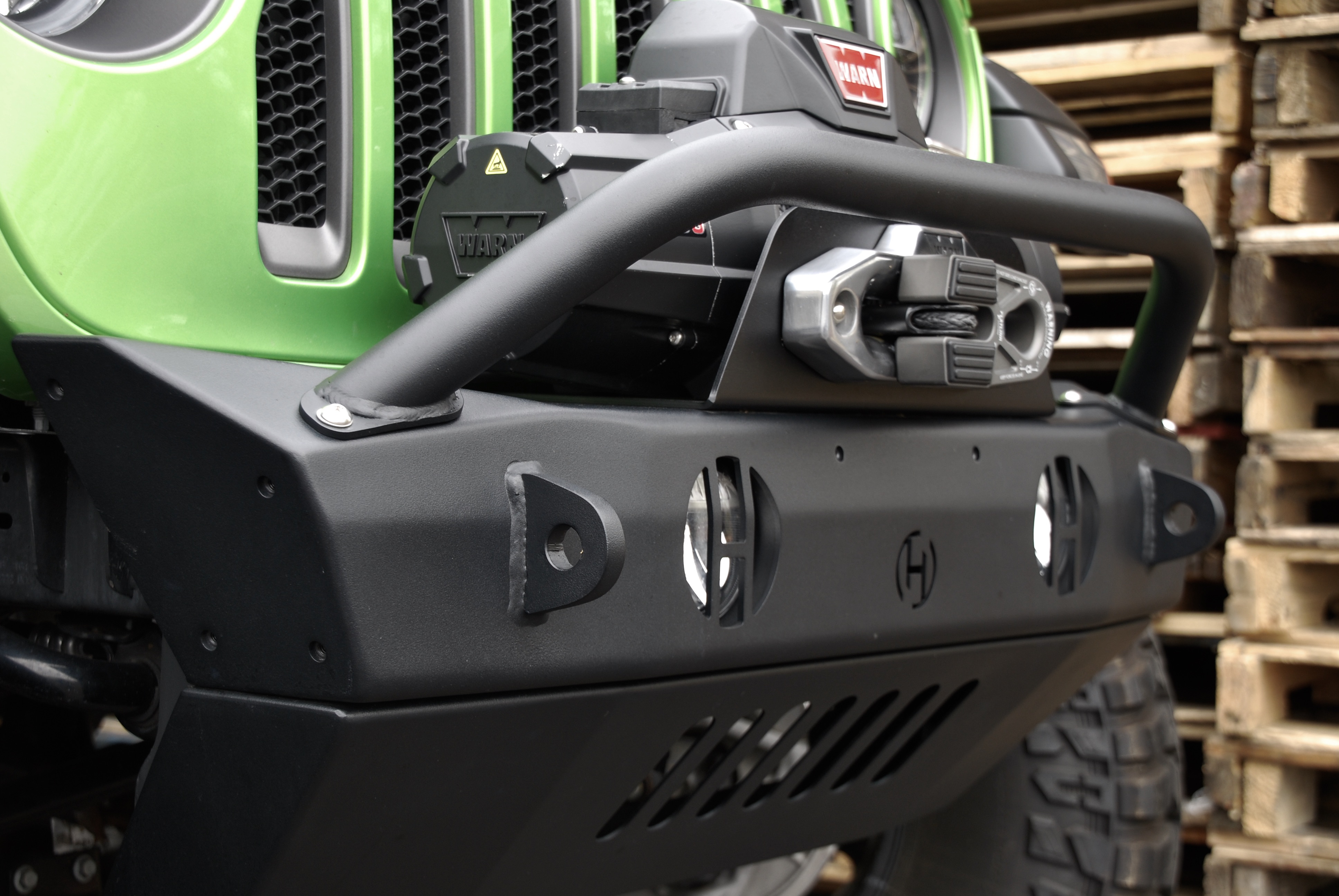

  • 5/8” Plate Shackle Mounts (Hole size for 3/4” Shackles)
  • Completely Bolt On Design - No Cutting or Drilling
  • Winch holes for standard 10” x 4.5” bolt pattern
  • Frame Reinforcement Brackets for winch
  • Fairlead Mounting Plate is included for hawse or roller fairlead
  • Threaded holes to mount license or vanity plate
  • Mounting Brackets are included with this bumper for OEM Halogen and OEM LED Fog Lights (If your LED Fog Lights were removed from an OEM Steel Bumper you will need to purchase our mounting bracket part number 600.100.170 separately.  These fog lights have completely different housings and will require unique mounting brackets)

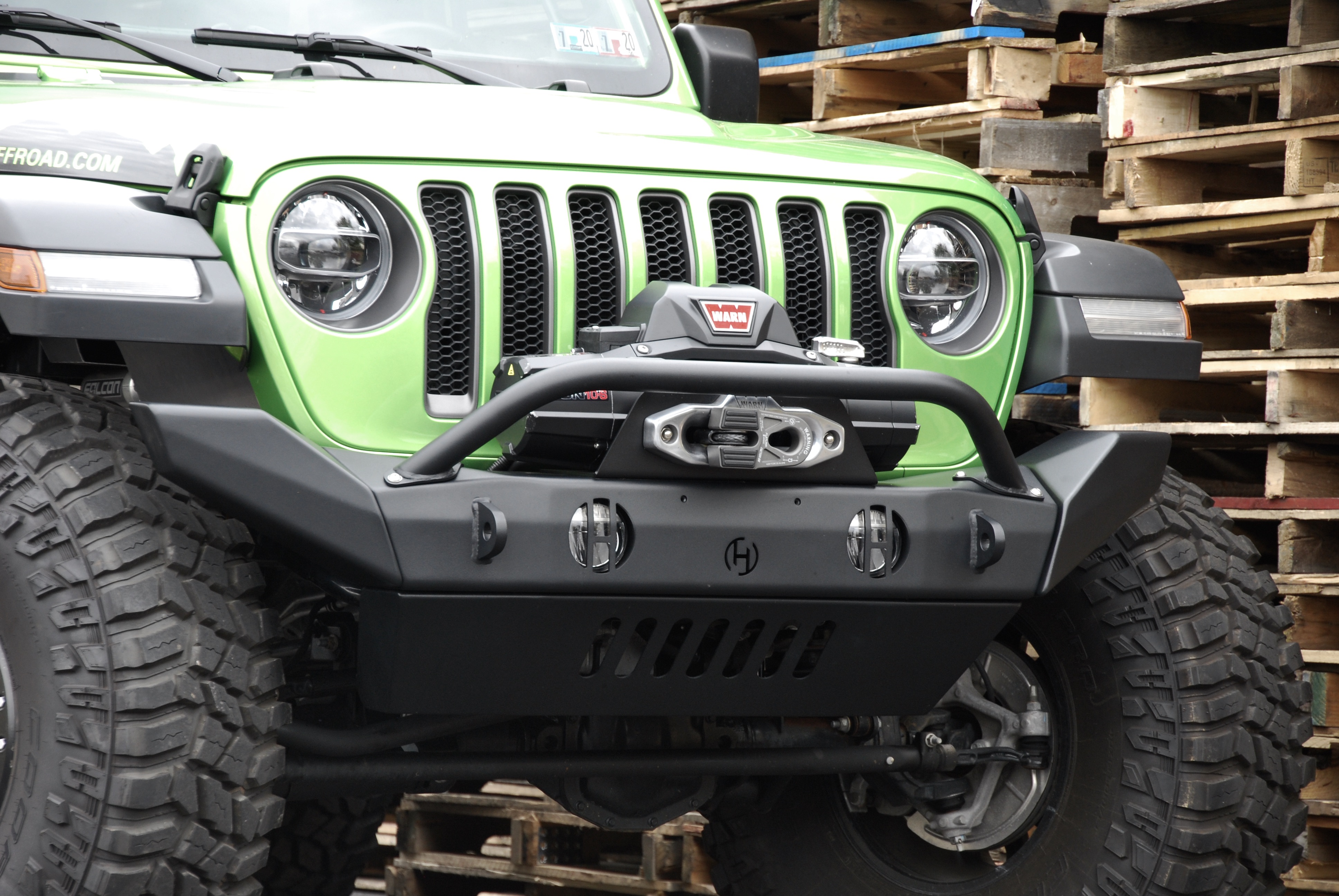

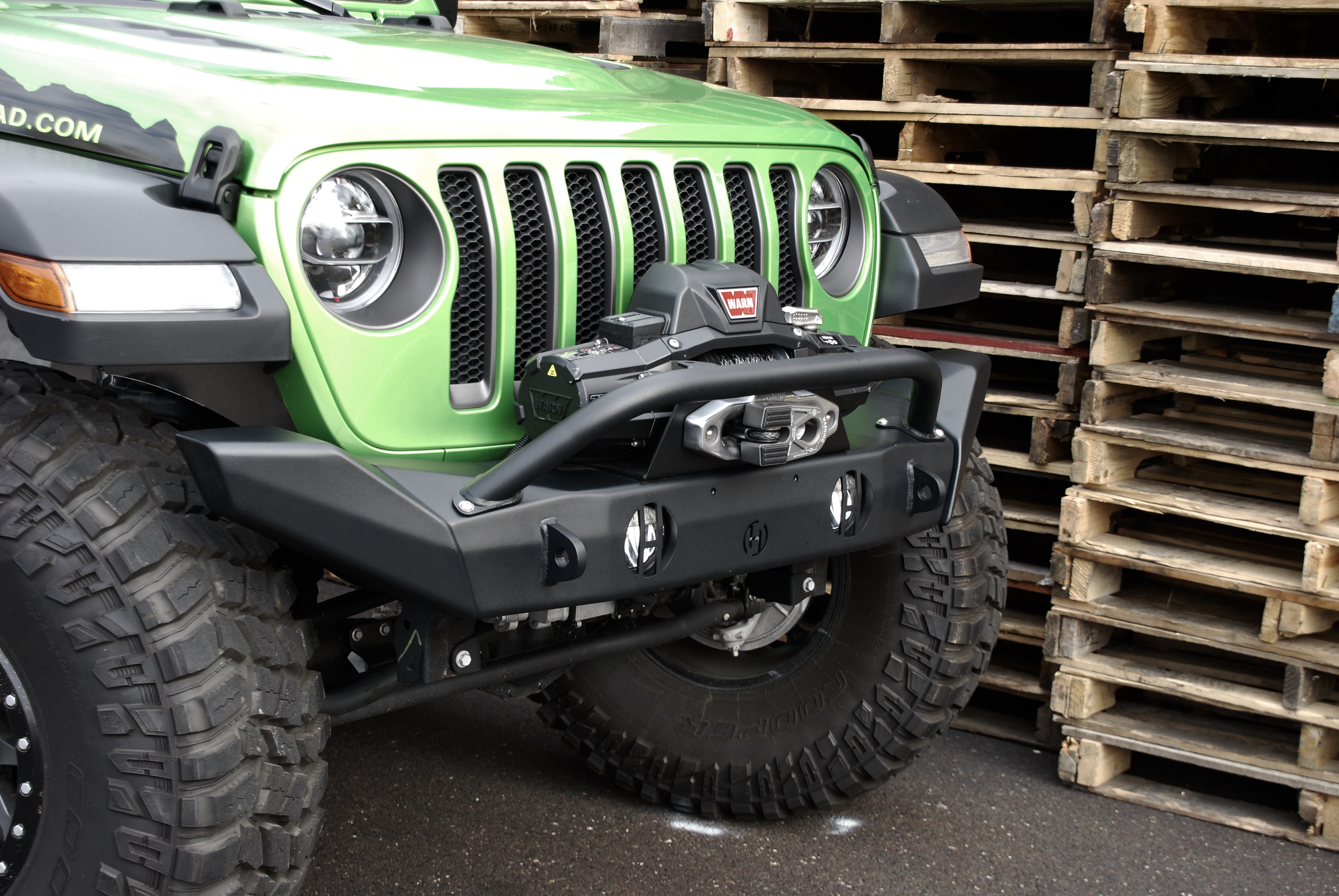

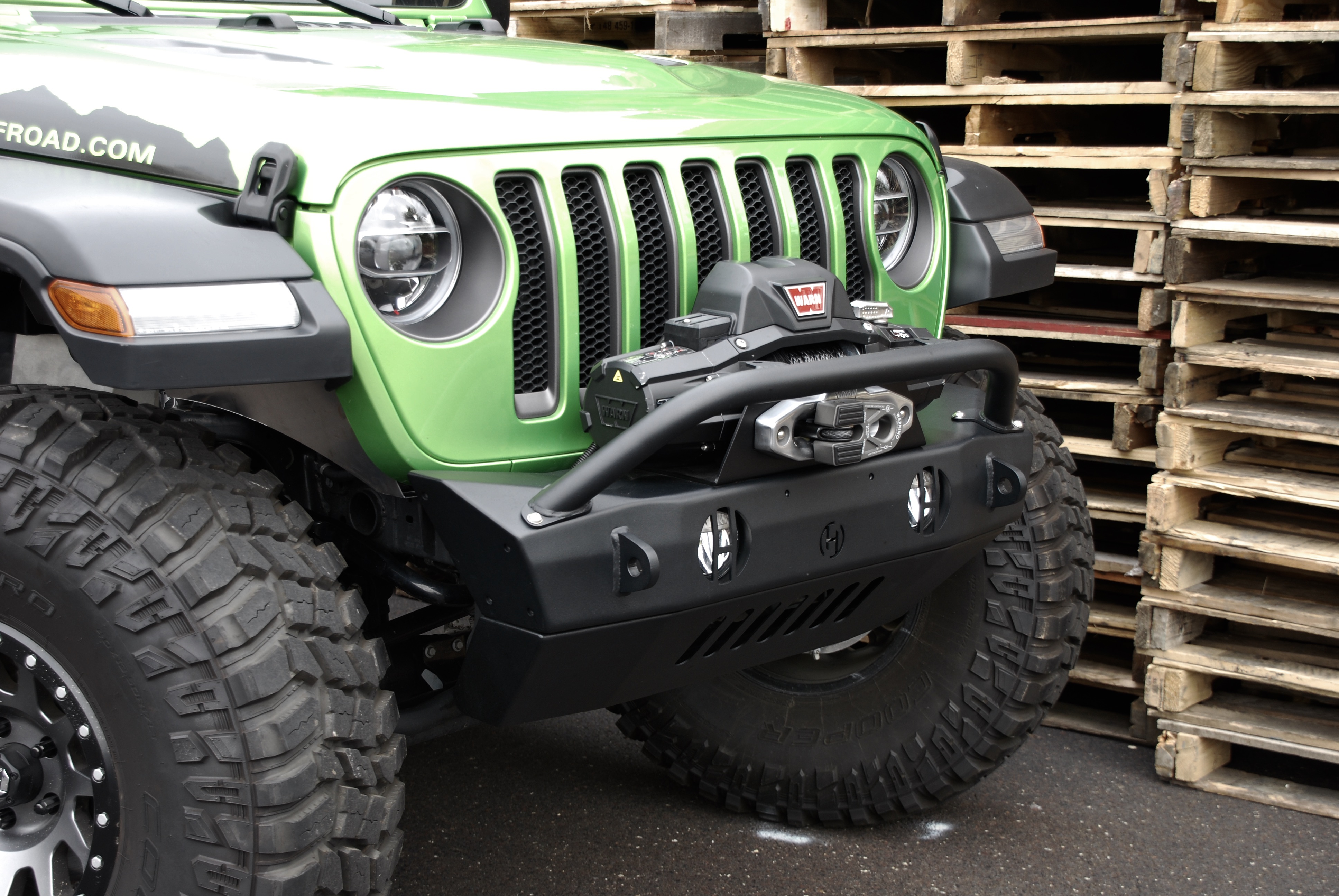

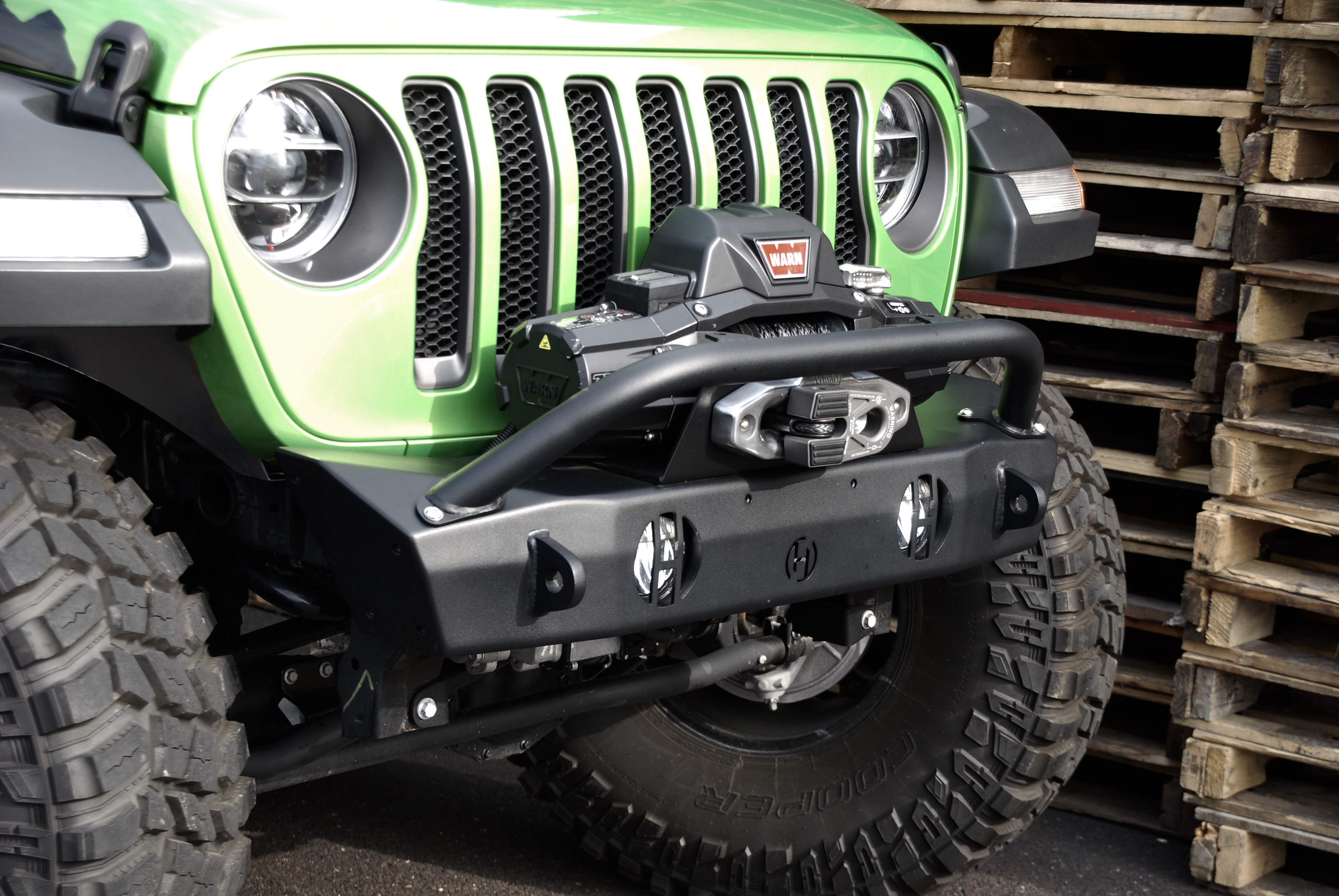

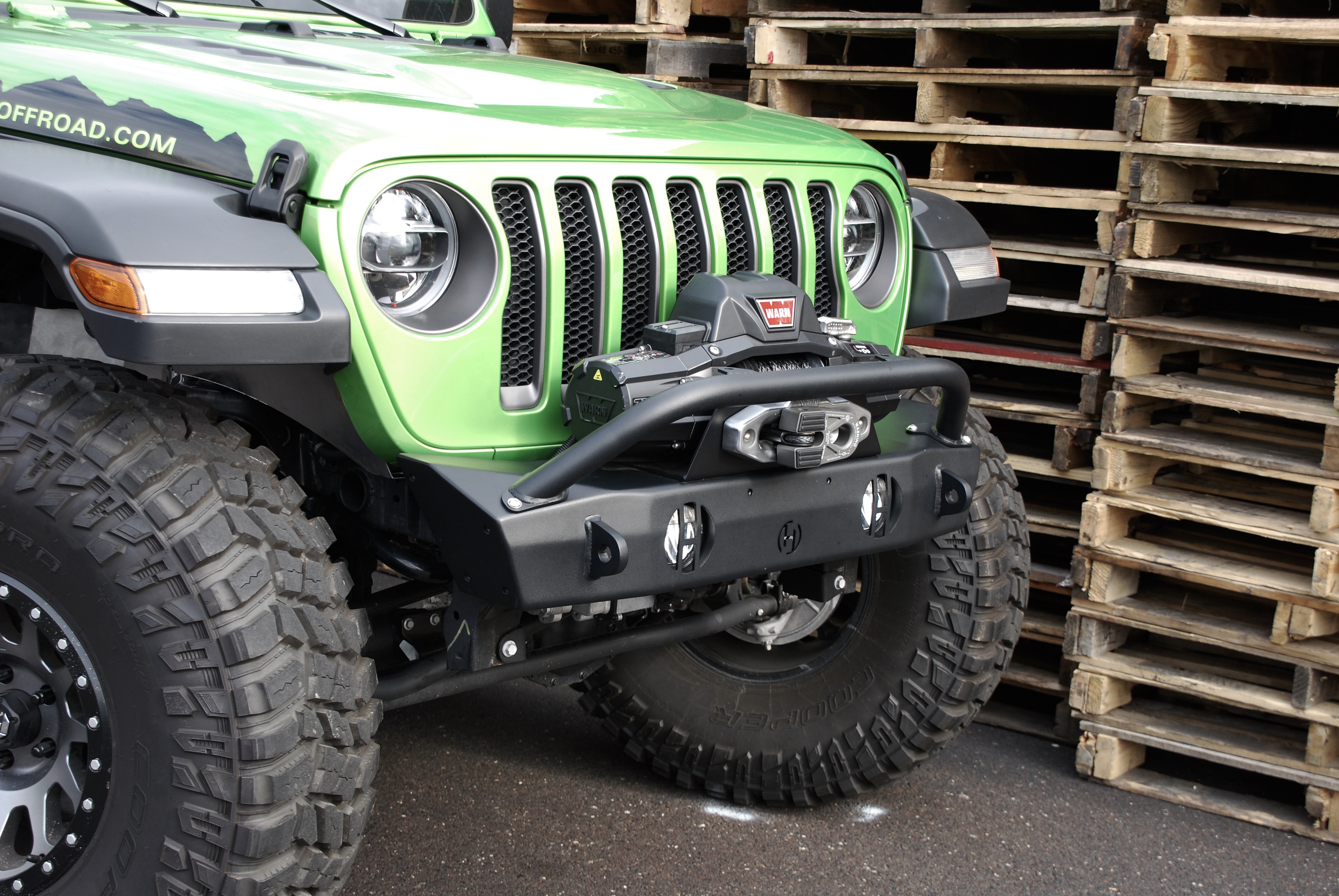

  • Ready for Optional Winch Guard/Light Bar (Part Number 600.100.150)
  • Ready for Optional Full Width Bumper End Caps (Part Number 600.100.140)

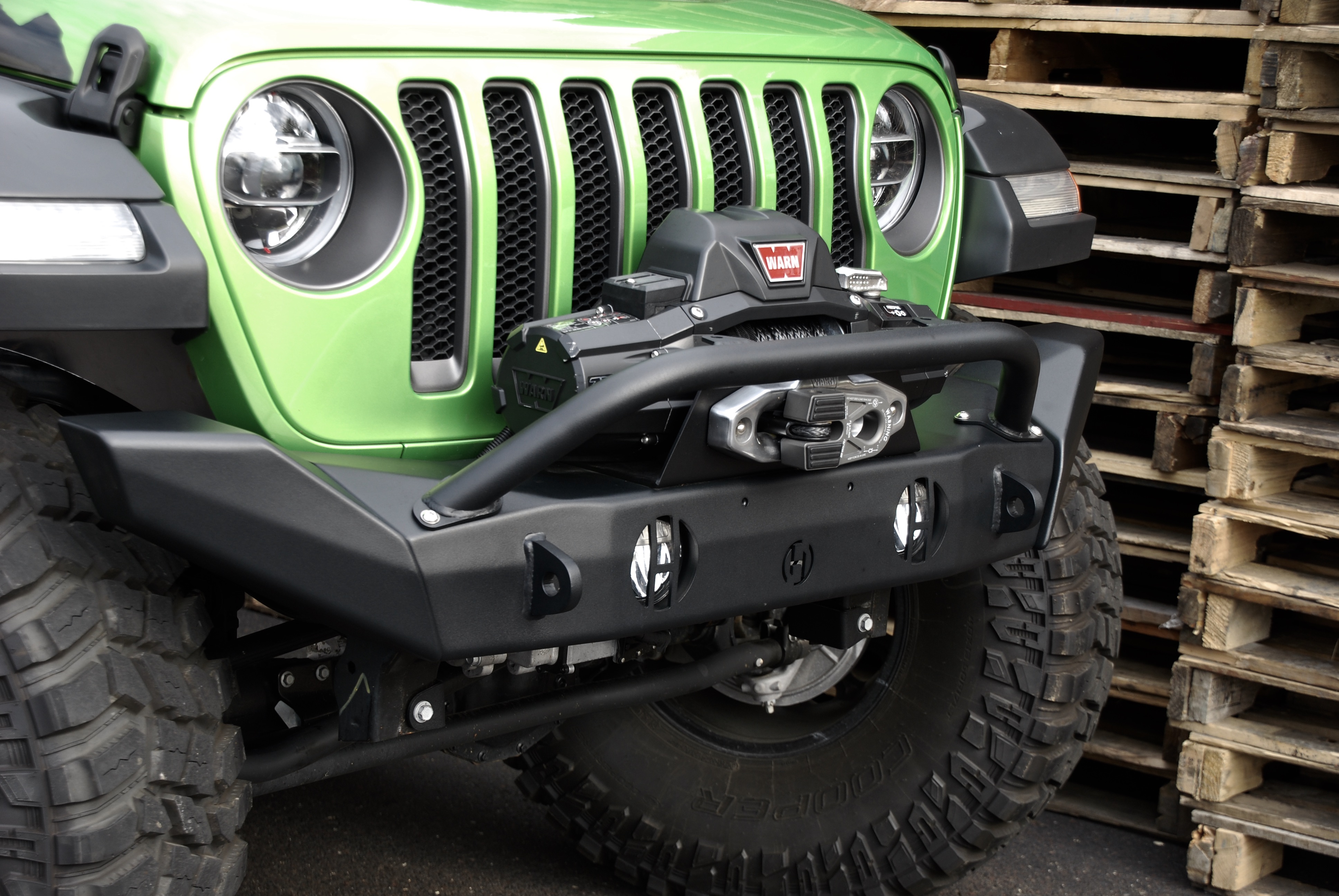

  • Ready for Optional Mid Width Bumper End Caps (Part Number 600.100.130)

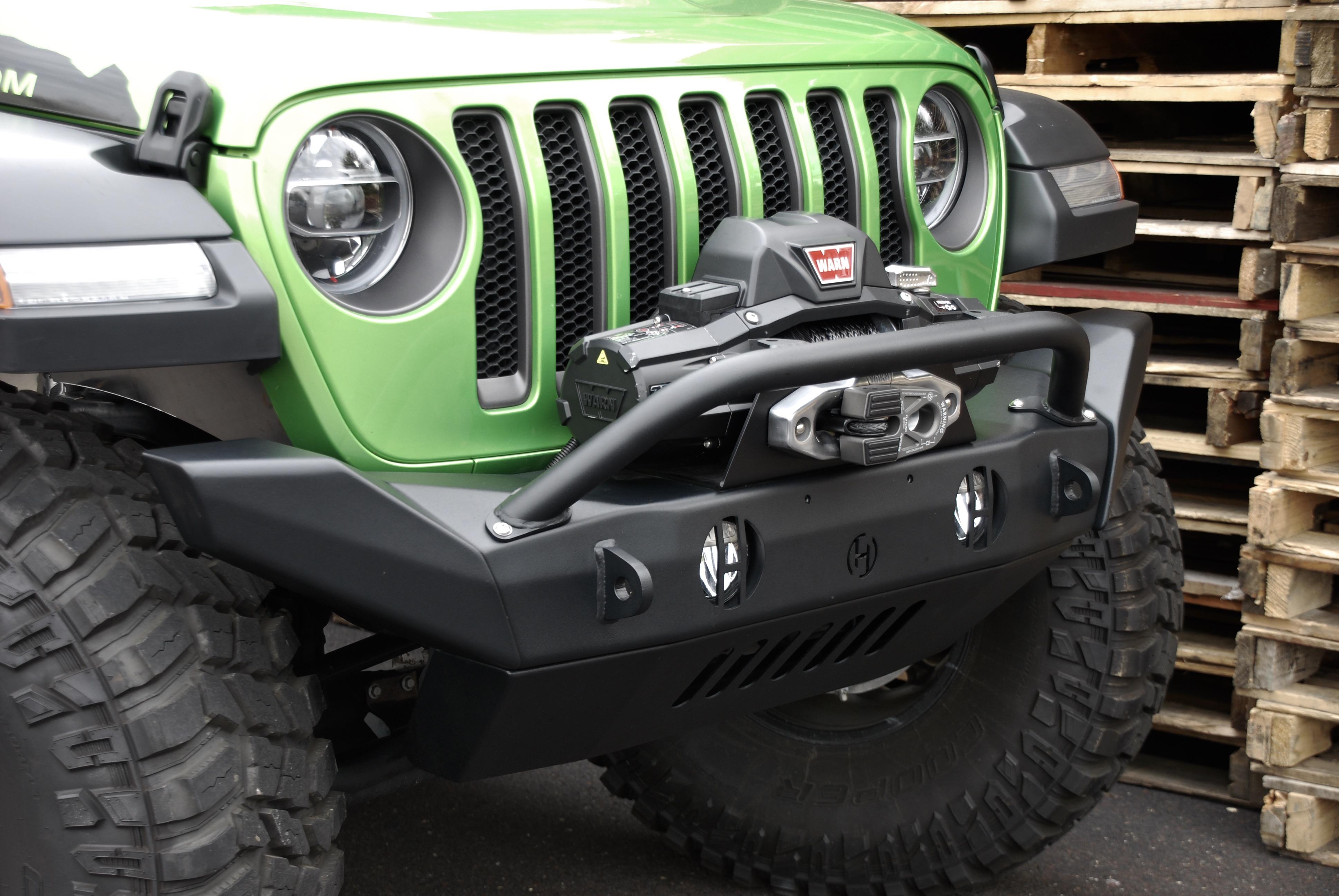

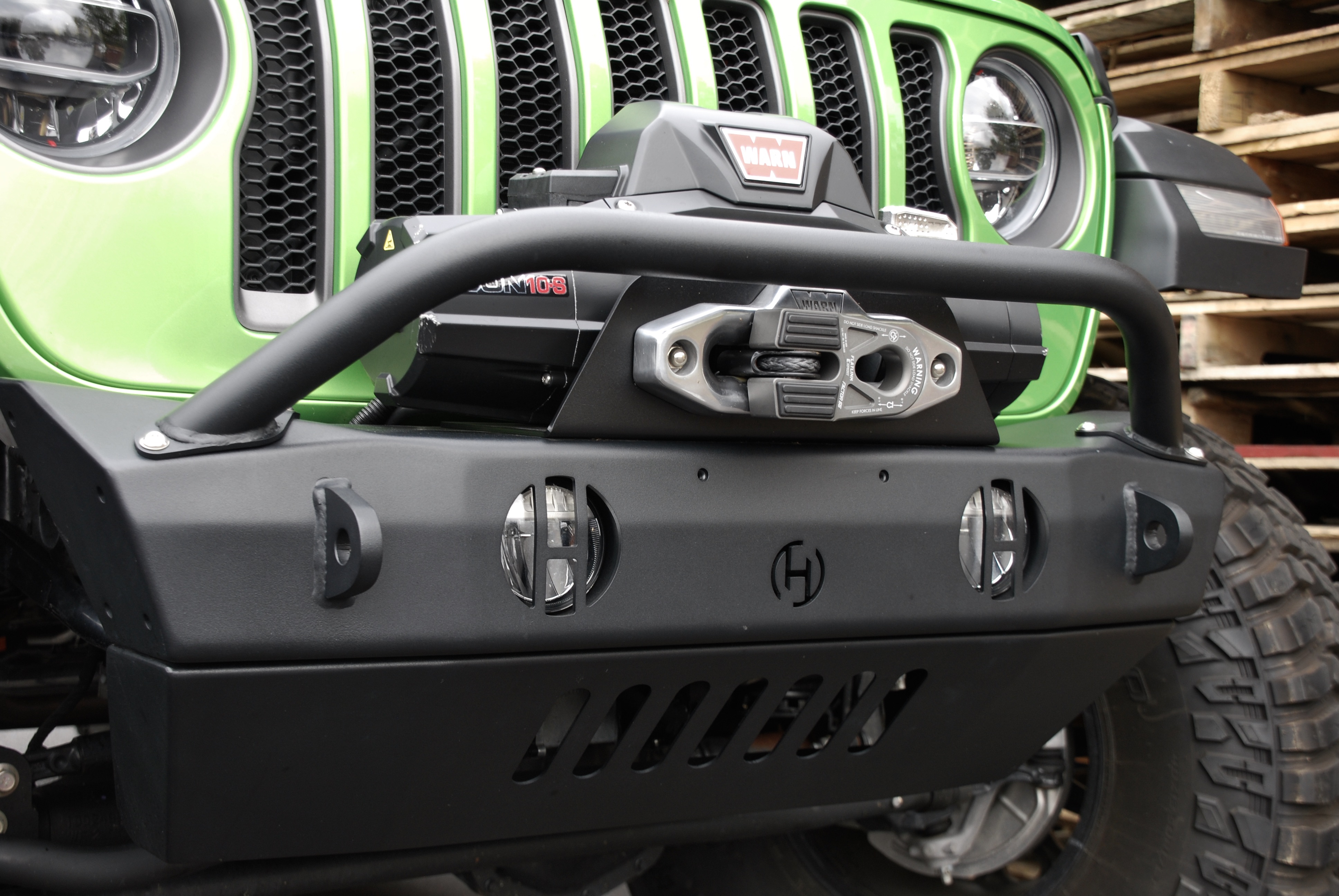

  • Ready for Optional Air Dam Skid Plate (Part Number 600.100.110)
  • All hardware included is 316 Stainless Steel and Super Corrosion Resistant Coated High Strength Steel
    • Prepped (Acid Rinsed), Primed (E-Coated) and Top Coated (Automotive Grade Textured Powder Coat)
    • Proudly Made 100% In USA.



Tools Required:

Ratchet, 7mm socket, 8mm socket, 16mm socket, 18mm deep socket, 6” extension, 11/16” deep socket, 9/16” socket, panel fastener removal tool or flat blade screwdriver, 3/32” hex wrench and 5/32” hex wrench.

Parts Included:

Front bumper, winch fairlead plate, winch reinforcement brackets, OEM halogen and OEM LED fog light mounts, fully welded D-Ring mounts (3/4” shackles not included), installation instructions and all required mounting hardware.
